Anti-Beta4-Spectrin Antibody (N393/76)

Name: Anti-Beta4-Spectrin Antibody
Brand: NeuroMab
SKU: 75-377
Price: 385.0 USD
Availability: InStock

14 Citations

Our Anti-Beta4-spectrin mouse monoclonal primary antibody from NeuroMab is produced in-house from hybridoma clone N393/76. It detects human, mouse, and rat Beta4-spectrin, and is purified by Protein A chromatography. It is great for use in IHC, ICC, WB.

Adult rat cerebral cortex immunohistochemistry.

Hippocampus immunohistochemistry with antigen retrieval via pepsin pretreatment showing axon initial segment and nodal staining.

Higher magnification of corpus callosum and CA1.

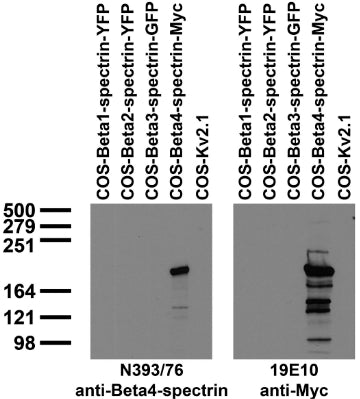

Immunoblot against extracts of COS cells transiently transfected with tagged Beta-spectrins or untagged Kv2.1 plasmid probed with N393/76 (left) or 19E10 (right) TC supe.

Immunocytochemistry for α1, α2, and β4 spectrin (cat. 75-377, 1:500) carried out in fixed and permeabilized DIV 21 primary cultured pHα2 mouse neurons. Image from publication CC-BY-4.0. PMID:36604600

Confocal images of primary hippocampal neurons stained with phalloidin-647 (F-actin marker) and with an antibody against beta4-spectrin (Antibodies Inc; Cat

Adult rat cerebral cortex immunohistochemistry.

Roll over image to zoom in Click on image to zoom

Species Reactivity

Human, Mouse, Rat

Applications

ICC, IHC, WB

Host Species

Mouse

Conjugates and Formulations

490

550

594

650

Carrier-Free

Go to Full Product Details

Data Sheet

SKU: 75-377

Volume: 100 µL

Variant

Price:

$385.00

Quantity:

Ships: 1-2 business days

Product Details

Target

Beta4-spectrin

Scientific Background

Spectrin beta chain, non-erythrocytic 4, or ß4 spectrin, is a member of the spectrin family of cytoskeletal proteins. It is found in the cytoskeleton and cell cortex of cells in the brain and pancreatic islets. It is also expressed in skeletal muscule. ß4 spectrin functions as a scaffold protein that links the actin cytoskeleton to the plasma membrane. It is involved in cell shape and organization. Mutations in the ß4 spectrin gene are associated with congenital myopathy, and neurodevelopmental disorder with hypotonia, neuropathy and deafness (NEDHND).

Format

Purified by Protein A chromatography

Concentration

1 mg/mL

Clonality

Monoclonal

Clone

N393/76

Isotype

IgG2b

Applications

ICC, IHC, WB

Host Species

Mouse

Gene Name

SPTBN4 KIAA1642 SPTBN3

Molecular Weight

>200 kDa

Immunogen

Fusion protein amino acids 1621-1832 (C-terminal repeats 14 to 15) of human Beta4-spectrin (accession number Q9H254) produced recombinantly in E. Coli

Immunogen Species

Human

Species Reactivity

Human, Mouse, Rat

Antibody Registry ID

AB_2315818

Storage

Aliquot and store at ≤ -20°C for long term storage. For short term storage, store at 2-8°C. For maximum recovery of product, centrifuge the vial prior to removing the cap.

Physical State

Liquid

Production Notes

Produced by in vitro bioreactor culture of hybridoma line followed by Protein A affinity chromatography. Purified mAbs are >90% specific antibody.

Buffer

10 mM Tris, 50 mM Sodium Chloride, 0.065% Sodium Azide pH 7.125

Dilution Ranges

WB: 1:1000
IHC: 1:250
ICC: 1:500

Conjugate

Unconjugated

Specificity

Does not cross-react with other Beta-spectrins

Quality Control

Each new lot of antibody is quality control tested by IHC on either rat or mouse brain and confirmed to give the expected staining pattern.

Usage Statement

These antibodies are to be used as research laboratory reagents and are not for use as diagnostic or therapeutic reagents in humans.

Country of Origin

United States

Expiration

24 months from date of receipt

Synonyms

Spectrin beta chain, non-erythrocytic 4 (Beta-IV spectrin) (Spectrin, non-erythroid beta chain 3)

UniProt ID

Q9H254

Shipping

Shipped on ice packs

Product Specific References for Applications and Species

Immunocytochemistry: Human | Mouse
Immunohistochemistry: Human | Mouse | Rat
Western Blot: Mouse | Rat

Immunocytochemistry: Human
PMID	Dilution	Publication
39920295	1:200	Di Re, J, et al. 2025. βIV spectrin abundancy, cellular distribution and sensitivity to AKT/GSK3 regulation in schizophrenia. Molecular Psychiatry, .
39804991	1:500	Wang, H, et al. 2025. The Primary Cilia are Associated with the Axon Initial Segment in Neurons. Advanced Science, e2407405.

Immunocytochemistry: Mouse
PMID	Dilution	Publication
39415847	1:500	Li, Y, et al. 2024. Alterations in the axon initial segment plasticity is involved in early pathogenesis in Alzheimer's disease. MedComm, e768.
38525600	1:500	Konietzny, A, et al. 2024. Efficient axonal transport of endolysosomes relies on the balanced ratio of microtubule tyrosination and detyrosination. Journal of Cell Science, .
36604600	1:500	Smalley, J.L., et al. 2023. Spectrin-beta 2 Facilitates the Selective Accumulation of GABAA Receptors at Somatodendritic Synapses. Communications Biology, 11.
35411984	1:500	Wang, Y., et al. 2022. Glucose Increases the Length and Spacing of the Lattice Structure of the Axon Initial Segment. Microscopy Research and Technique, 2679-2691.
34534742	not listed	Wang, Y., et al. 2021. The largest isoform of Ankyrin-G is required for lattice structure of the axon initial segment. Biochemical and biophysical research communications, 28-34.
32125730	not listed	Jarjour, A.A., et al. 2020. The formation of paranodal spirals at the ends of CNS myelin sheaths requires the planar polarity protein Vangl2. Glia, 1840-1858.
29398366	not listed	Jacko, M., et al. 2018. Rbfox Splicing Factors Promote Neuronal Maturation and Axon Initial Segment Assembly. Neuron, 853-868.

Immunohistochemistry: Human
PMID	Dilution	Publication
39920295	1:500	Di Re, J, et al. 2025. βIV spectrin abundancy, cellular distribution and sensitivity to AKT/GSK3 regulation in schizophrenia. Molecular Psychiatry, .

Immunohistochemistry: Mouse
PMID	Dilution	Publication
31591156	1:200	Sozmen, E.G., et al. 2019. White matter stroke induces a unique oligo-astrocyte niche that inhibits recovery. Journal of Neuroscience, 39(47), pp.9343-9359.. Journal of Neuroscience, 9343-9359.
31532918	1:200	Di Re, J., et al. 2019. Imaging of the Axon Initial Segment. Current Protocols in Neuroscience, e78.

Immunohistochemistry: Rat
PMID	Dilution	Publication
32736374	1:250	Werginz, P., et al. 2020. The relationship between morphological properties and thresholds to extracellular electric stimulation in α RGCs. Journal of Neural Engineering, 45015.
32553116	1:250	Hanemaaijer, N.A., et al. 2020. Ca 2+ entry through Na V channels generates submillisecond axonal Ca 2+ signaling. Elife, e54566.

Western Blot: Mouse
PMID	Dilution	Publication
36604600	1:1000	Smalley, J.L., et al. 2023. Spectrin-beta 2 Facilitates the Selective Accumulation of GABAA Receptors at Somatodendritic Synapses. Communications Biology, 11.
31910261	not listed	Lee, M., et al. 2020. Ecm29-mediated proteasomal distribution modulates excitatory GABA responses in the developing brain. Journal of Cell Biology, e201903033.
29956586	1:500	Dash, B., et al. 2018. Nonmuscle myosin II isoforms interact with sodium channel alpha subunits. . Molecular pain, .

Western Blot: Rat
PMID	Dilution	Publication
28785724	1:1000	Kneynsberg, A., et al. 2017. Aging Does Not Affect Axon Initial Segment Structure and Somatic Localization of Tau Protein in Hippocampal Neurons of Fischer 344 Rats. eNeuro, .
