Anti-High-Mobility Group Protein 1 (HMGB1) Antibody (1F3)

Our Anti-High-mobility group protein 1 (HMGP-1) mouse monoclonal primary antibody detects bovine, human, mouse, other mammals (predicted), pig, and rat High-mobility group protein 1 (HMGP-1), and is IgG. It is validated for use in FC, ICC, WB.

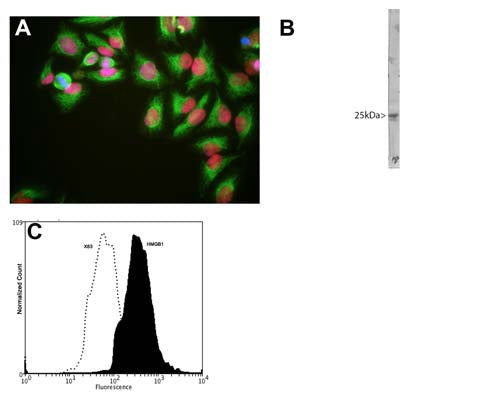

A: HeLa cells stained with M-1702-100 (red), chicken polyclonal antibody to Vimentin (C-1409-50, green) and DNA (blue). The M-1702-100 antibody reveals strong nuclear staining which overlaps with the DNA stain. B: Blot of crude HeLa cell extract stained with M-1702-100. HMGB1 runs at an apparent molecular weight of 25 kDa. C: Analysis of HMGB1 expression in human euroblastoma SH-SY5Y cell line by Flow Cytometry. Fixing and Permeabilization of cells: Absolute methanol (10 minutes in ice) and 0.1% Tween-20 in PBS, Blocking: 1% BSA, Primary antibody: Mouse Monoclonal antibody to HMGB1 (cat # M-1702-100, 2μg per ~10^6 cells) for 30 minutes at room temperature, Secondary antibody: Goat anti-mouse PE labeled secondary antibody (1:100 fold dilution) with incubation for 20 minutes in dark at room temperature. Non-specific Control IgG, clone X63 (cat # M-1249-200) was used as negative control under same conditions (black dashed). Flow cytometry data and results were generated using Orflo MoxiflowTM instrument and protocols.

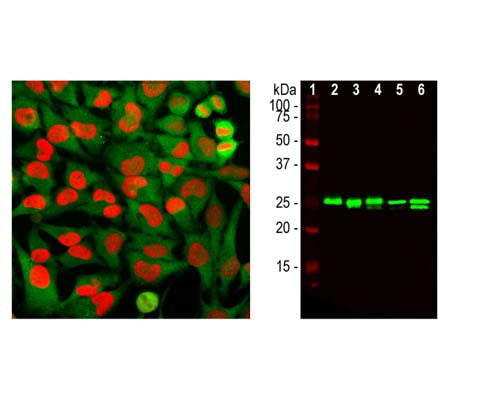

Left: HMGB1 detection in HeLa cells by Immunocytochemistry. Cells were stained with mouse antibody to HMGB1 (red, 1:2,000 ), and co-stained with rabbit antibody to GAPDH (R-1701-100, green, 1:2,000). The HMGB1 antibody stains the chromatin binding protein HMGB1, which is localized in the nuclei. In contrast, the GAPDH antibody produces strong cytoplasmic staining. Right: Western blot analysis of HMGB1 expression (green) in cell lysates, using mouse antibody to HMGB1 at 1:2,000 dilution. [1] protein standard, [2] NIH-3T3, [3] C6, [4] HEK293, [5] HeLa, and [6] SH-SY5Y. The 25 kDa band corresponds to HMGB1 protein.
A: HeLa cells stained with M-1702-100 (red), chicken polyclonal antibody to Vimentin (C-1409-50, green) and DNA (blue). The M-1702-100 antibody reveals strong nuclear staining which overlaps with the DNA stain. B: Blot of crude HeLa cell extract stained with M-1702-100. HMGB1 runs at an apparent molecular weight of 25 kDa. C: Analysis of HMGB1 expression in human euroblastoma SH-SY5Y cell line by Flow Cytometry. Fixing and Permeabilization of cells: Absolute methanol (10 minutes in ice) and 0.1% Tween-20 in PBS, Blocking: 1% BSA, Primary antibody: Mouse Monoclonal antibody to HMGB1 (cat # M-1702-100, 2μg per ~10^6 cells) for 30 minutes at room temperature, Secondary antibody: Goat anti-mouse PE labeled secondary antibody (1:100 fold dilution) with incubation for 20 minutes in dark at room temperature. Non-specific Control IgG, clone X63 (cat # M-1249-200) was used as negative control under same conditions (black dashed). Flow cytometry data and results were generated using Orflo MoxiflowTM instrument and protocols.
A: HeLa cells stained with M-1702-100 (red), chicken polyclonal antibody to Vimentin (C-1409-50, green) and DNA (blue). The M-1702-100 antibody reveals strong nuclear staining which overlaps with the DNA stain. B: Blot of crude HeLa cell extract stained with M-1702-100. HMGB1 runs at an apparent molecular weight of 25 kDa. C: Analysis of HMGB1 expression in human euroblastoma SH-SY5Y cell line by Flow Cytometry. Fixing and Permeabilization of cells: Absolute methanol (10 minutes in ice) and 0.1% Tween-20 in PBS, Blocking: 1% BSA, Primary antibody: Mouse Monoclonal antibody to HMGB1 (cat # M-1702-100, 2μg per ~10^6 cells) for 30 minutes at room temperature, Secondary antibody: Goat anti-mouse PE labeled secondary antibody (1:100 fold dilution) with incubation for 20 minutes in dark at room temperature. Non-specific Control IgG, clone X63 (cat # M-1249-200) was used as negative control under same conditions (black dashed). Flow cytometry data and results were generated using Orflo MoxiflowTM instrument and protocols.
Click on image to zoom

Bovine, Human, Mouse, Pig, Rat
Flow, ICC, WB
Mouse

Go to Full Product Details

Data Sheet

SKU: M-1702-100

Volume/Size: 100 µg
Price:
$327.00

Bulk Order Anti-High-Mobility Group Protein 1 (HMGB1) Antibody
