Near-Infrared DyLight® 747 Tracer in vivo Active Caspase (VAD) Assay

A fluorescent, cell-permeable tracer for the non-invasive measurement of caspase activity in live animals. The Val-Ala-Asp caspase binding sequence gives the DyLight® 747-VAD-FMK Tracer reagent broad caspase reactivity. Dylight® is a registered trademark of Thermo Fisher Scientific, Inc.



SKU: 9114

Size: 20 Tests
Price:
Sale price$438

ICT's DyLight® Tracer reagents provide a powerful method for assessing caspase activity in vivo. Like our FLICA® probes, but optimized for whole live animal imaging, our DyLight® Tracers are non-cytotoxic fluorescent inhibitors of caspases. ICT’s near-infrared poly caspase tracers contain the preferred binding sequence for most caspases, Val-Ala-Asp (VAD). This preferred poly caspase tripeptide binding sequence is labeled at the amino terminus end with *Dylight® 690 or DyLight® 747 NIR label and linked at the carboxyl end to a fluoromethyl ketone (FMK) reactive entity.

Apoptosis is an evolutionarily conserved process of programmed cell suicide. It is centered on a cascade of proteolytic enzymes called caspases that are triggered in response to pro-apoptotic signals. Like most other proteases, caspases are synthesized as pro-form precursors that undergo proteolytic maturation, either autocatalytically or in a cascade by enzymes with similar specificity. Active caspase enzymes consist of two large (~20 kD) and two small (~10 kD) subunits that non-covalently associate to form a two heterodimer, tetrameric active caspase. Once activated, caspases cleave protein substrates leading to the eventual disassembly of the cell. Caspases have been identified in organisms ranging from C. elegans to humans. Mammalian caspases play distinct roles in both apoptosis and inflammation.

DyLight® Tracer kits provide a simple yet accurate method to detect caspase activity in vivo. To label cells containing elevated levels of active caspases, inject the DyLight® Tracer intravenously and let it circulate. Because the DyLight® Tracer is cell-permeant, it readily diffuses in and out of all cells it encounters as it circulates throughout the body. If there are active caspase enzymes inside a cell, the DyLight® Tracer will form an irreversible covalent bond with a reactive cysteine on the large subunit of the caspase heterodimer, thereby inhibiting further enzymatic activity. The bound DyLight® Tracer will remain inside the cell if the cell membrane is intact. Any unbound DyLight® Tracer is removed from the circulation of the animal in about an hour. The remaining NIR fluorescent signal in the tissue is a direct measure of caspase activity that occurred at the time the reagent was injected. Apoptotic cells will retain a higher concentration of DyLight® Tracer and fluoresce brighter than non-apoptotic cells. There is no interference from pro-caspases or inactive forms of the enzyme. If the treatment is causing cell death via apoptosis, apoptotic cells will have an elevated level of caspase activity relative to non-apoptotic or negative control cells and fluoresce near-infrared with DyLight® Tracers.

NIR-DyLight® Tracers are used in conjunction with NIR Free Dye Control Assays (sold separately). The NIR Free Dye Control Assay uses the NIR fluorescent dye molecule. When injected, both the Free Dye Control and the Tracer reagents will generate a fluorescent signal, but only the Tracer should bind to active caspases and remain inside an apoptotic cell. The fluorescent signal generated from the Free Dye Control reveals where the fluorescent reagent may have become trapped inside the cell, tissues, or body of the animal without specifically binding with an active caspase. In the context of the overall experiment, this base level of fluorescence is considered background noise compared with the signal generated in animals that were injected with the NIR-DyLight® Tracer.

An initial experiment may be necessary to determine when and how much DyLight® Tracer to inject based on the size of the animal, tissue type, experimental conditions, rate of apoptosis, and method of analysis. Generally, the longer DyLight® Tracercirculates, the lower the non-specific background signal; however, some apoptotic cells may be lost over time. After 60 minutes, most of the unbound NIR-DyLight® Tracer or Free Dye Control will have cleared the bloodstream. The bound NIR-DyLight® Tracer will remain inside an apoptotic cell and generate a positive signal if the cell membrane is still intact.

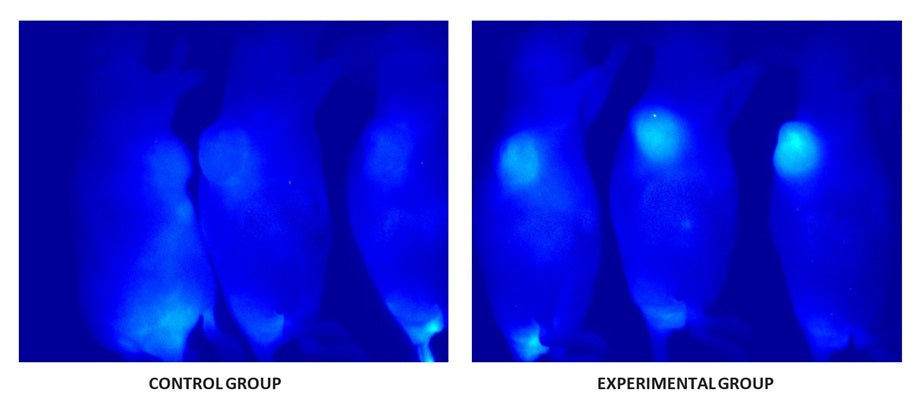

Once the animals have been injected with DyLight® Tracer, they are ready for analysis and no further staining is necessary. Because DyLight® Tracer is a direct stain, it eliminates any false positives that may arise from manipulation of the tissue. This gives a true representation of the induction of apoptosis in vivo as a result of the experimental condition. Live animals may be analyzed in a whole animal imager, and/or tissues may be prepared and further analyzed by histological methods. Tissues labeled with DyLight® Tracer can be counter-stained with other reagents such as DAPI, and fixed or frozen for future analysis. The fluorescence intensity can be quantified by excising the tissue and analyzing cells with a flow cytometer. NIR-DyLight® 690 Tracer optimally excites at 690 nm and has a peak emission at 709 nm. NIR-DyLight® 747 Tracer optimally excites at 747 nm and has a peak emission at 776 nm.

*Dylight® is a registered trademark of Thermo Fisher Scientific, Inc. and its subsidiaries.

NIR-FLIVO® 747 Tracer (747-VAD-FMK)
Poly Caspases
747 nm/776 nm
Use instrumentation designed for non-invasive live animal imaging, alternatively, excised tissues can be analyzed by fluorescence microscope or flow cytometer.
Whole animal fluorescence imaging, excised tissues
-20°C
Ships overnight (domestic), International Priority Shipping
United States
  1. Prepare samples and controls.
  2. Dilute 10X Injection Buffer 1:10 with 45 mL diH20.
  3. Reconstitute NIR-FLIVO 747 Tracer with 50 μL DMSO.
  4. Dilute NIR-FLIVO 1:10 with 450 μL 1X Injection Buffer.
  5. Inject 50 μL intravenously.
  6. Let NIR-FLIVO circulate for 4 hours.
  7. Image the animal. NIR-FLIVO 747 Tracer excites at 747 nm and emits at 776 nm.
  8. If not viewing directly, excise tissue and process samples for further analysis.
  9. Optional: label excised samples with additional stains, such as Hoechst 33342, or an antibody.
  10. If desired, fix excised samples.
  11. Analyze excised samples with a fluorescence microscope or flow cytometer.
Kit 9114:
  • 2 vials of NIR-FLIVO® 747 Tracer (*Dylight® 747-VAD-FMK), 10 Tests per vial, 77.3 μg per vial, #6308
  • 1 bottle of 10X Injection Buffer, 5 mL, #6220
  • Kit Manual
  • FLIVO® is a registered trademark of ICT. *Dylight® is a registered trademark of Thermo Fisher Scientific, Inc. and its subsidiaries.

    Wu Q, Berglund AE, Wang D, MacAulay RJ, Mulé JJ, Etame AB. Paradoxical epigenetic regulation of XAF1 mediates plasticity towards adaptive resistance evolution in MGMT-methylated glioblastoma. Sci Rep. 2019 Oct 1;9(1):14072. doi: 10.1038/s41598-019-50489-2. Full Text
