Anti-Lysosomal Associated Membrane Protein 1 (LAMP1) Antibody (5H6)

Name: Anti-Lysosomal Associated Membrane Protein 1 (LAMP1) Antibody
Brand: Biosensis
SKU: M-1690-100
Price: 327.0 USD
Availability: InStock

Our Anti-Lysosomal Associated Membrane Protein 1 (LAMP1) mouse monoclonal primary antibody detects human Lysosomal Associated Membrane Protein 1 (LAMP1), and is IgG. It is validated for use in FC, ICC, WB.

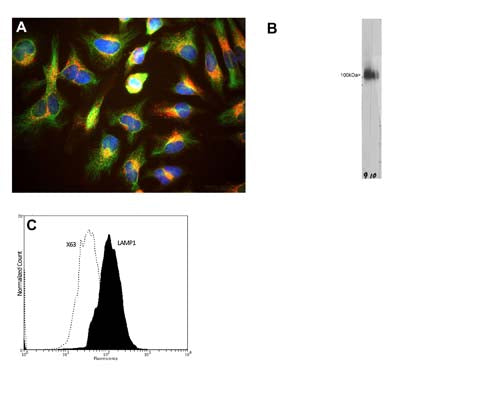

A: HeLa cell staining with M-1690-100 (red), and counterstained with chicken polyclonal antibody to Vimentin C-1409-50 (green) and DNA (blue). The LAMP1 antibody reveals strong punctate cytoplasmic staining corresponding to lysosomes and late endosomes, while the Vimentin antibody reveals cytoplasmic intermediate filaments. B: Western blot of HeLa cell crude extract stained with M-1690-100 (lane 9). The antibody binds to a diffuse band running at between 90 and 120 kDa. C: Analysis of LAMP1 expression in human neuroblastoma SH-SY5Y cell line by Flow Cytometry. Fixing and Permeabilization of cells: Absolute methanol (10 minutes in ice) and 0.1% Tween-20 in PBS, Blocking: 1% BSA, Primary antibody: Mouse Monoclonal antibody to LAMP1 (cat # M-1690-100, 2μg per ~10^6 cells) for 30 minutes at room temperature, Secondary antibody: Goat anti-mouse PE labeled secondary antibody (1:100 fold dilution) with incubation for 20 minutes in dark at room temperature. Non-specific Control IgG, clone X63 (cat # M-1249-100) was used as negative control under same conditions (black dashed). Flow cytometry data and results were generated using Orflo MoxiflowTM instrument and protocols.

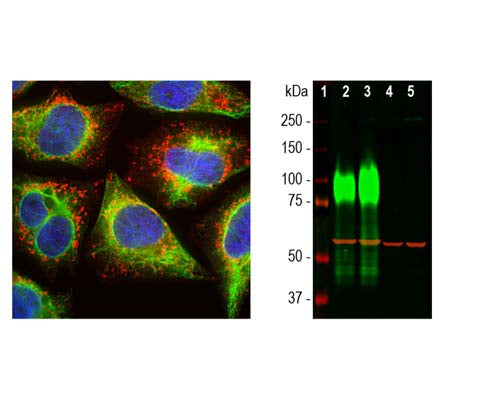

Left: Detection of LAMP1 protein in HeLa cells by Immunocytochemistry. LAMP1 was stained with mouse antibody to LAMP1 (red, 1:500), and co-stained with chicken antibody to vimentin (C-1409-50, green, 1:10,000). Blue: DAPI nuclear stain. The cells were treated with 50 uM chloroquine, an inhibitor of autophagy, for 16 hours prior to staining. The LAMP1 antibody reveals vesicular staining of LAMP1 protein accumulated in swollen lysosomes, while the vimentin antibody specifically labels the intermediate filament network in these cells. Right: Western blot analysis of LAMP1 protein expression in cell lysates using mouse antibody to LAMP1 (green, 1:10,000). Cells were maintained under normal conditions (Ct), or treated with 50 uM chloroquine (CQ), an inhibitor of autophagy, for 24 hours: [1] protein standard, [2] HeLa Ct, [3] HeLa+CQ, [4] NIH-3T3 Ct, and [5] NIH-3T3+CQ. The smeared band between 75-120 kDa rresponds to variably glycosylated forms of the LAMP1 protein detected only in the human cells, this antibody does not recognize the rodent LAMP1 homologue. The same blot was probed with a chicken antibody to HSP60 (red, lanes 2-5).

A: HeLa cell staining with M-1690-100 (red), and counterstained with chicken polyclonal antibody to Vimentin C-1409-50 (green) and DNA (blue). The LAMP1 antibody reveals strong punctate cytoplasmic staining corresponding to lysosomes and late endosomes, while the Vimentin antibody reveals cytoplasmic intermediate filaments. B: Western blot of HeLa cell crude extract stained with M-1690-100 (lane 9). The antibody binds to a diffuse band running at between 90 and 120 kDa. C: Analysis of LAMP1 expression in human neuroblastoma SH-SY5Y cell line by Flow Cytometry. Fixing and Permeabilization of cells: Absolute methanol (10 minutes in ice) and 0.1% Tween-20 in PBS, Blocking: 1% BSA, Primary antibody: Mouse Monoclonal antibody to LAMP1 (cat # M-1690-100, 2μg per ~10^6 cells) for 30 minutes at room temperature, Secondary antibody: Goat anti-mouse PE labeled secondary antibody (1:100 fold dilution) with incubation for 20 minutes in dark at room temperature. Non-specific Control IgG, clone X63 (cat # M-1249-100) was used as negative control under same conditions (black dashed). Flow cytometry data and results were generated using Orflo MoxiflowTM instrument and protocols.

Click on image to zoom

Species Reactivity

Human

Applications

Flow, ICC, WB

Host Species

Mouse

Go to Full Product Details

Data Sheet

SKU: M-1690-100

Volume/Size: 100 µg

Variant

Price:

$327.00

Quantity:

Product Details

Target

Lysosomal Associated Membrane Protein 1 (LAMP1)

Scientific Background

LAMP1 (Lysosomal Associated Membrane Protein 1, also known as CD107a, lysosomal associated membrane glycoprotein 1, LGP120 and LAMPA) is a protein primarily associated with the lysosomal membrane. In a typical cell LAMP1 is associated with spherical vesicles located next to the nucleus and the microtubule organizing center (1). LAMP1 is found on the cell surface of lymphocytes undergoing degranulation, a process in which cytoplasmic vesicles fuse with the plasma membrane, and this phenomena resulted in discovery of LAMP1 as a CD protein. The LAMP1 protein has a large N-terminal region which is inside the lysosome, hence topologically external to the cell, which is often referred to as the lumenal domain (2). The lumenal domain consists of two homologous globular segments separated by a proline rich sequence. Next there is a single membrane spanning domain and a short 11 amino acid C-terminal cytoplasmic tail. This tail region contains, at the extreme C-terminus, a so-called YXXI motif which is responsible for the sorting of the intact molecule to the endosome and lysozome, where Y = tyrosine, I = isoleucine and X = almost any amino acid (3). This motif is found in several other lysosomal proteins, where it functions in the same way. There are 417 amino acids in the human LAMP1 molecule, giving a native molecular weight of 44.8 kDa. However the N-terminal lumenal segment of LAMP1 is very heavily and variably glycosylated due to the presence of 18 N-linked glycosylation sites, so that on SDS-PAGE and on Western blots the protein runs as a diffuse band at 90-120 kDa. Antibodies to LAMP1 are therefore excellent markers of lysosomes in mammalian cells, though some LAMP1 may also be seen on late endosomes and on the plasma membrane.

Format

IgG

Clonality

Monoclonal

Clone

5H6

Isotype

IgG1

Applications

Flow, ICC, WB

Host Species

Mouse

Molecular Weight

90-120 kDa

Immunogen

Recombinant LAMP1 expressed and purified from E. coli.

Immunogen Species

Human

Species Reactivity

Human

Storage

Spin vial briefly before opening. Reconstitute in 100 uL sterile-filtered, ultrapure water. Centrifuge to remove any insoluble material. Concentration will be 1 mg/mL (100 µg/100 µL).After reconstitution of lyophilized antibody, aliquot and store at -20°C for a higher stability. Avoid freeze-thaw cycles.

Physical State

Lyophilized

Production Notes

Protein G purified

Buffer

Lyophilized from PBS buffer pH 7.2-7.6 with 0.1% trehalose, and sodium azide

Dilution Ranges

WB: 1:5000-1:10000
ICC: 1:1000-1:2000

Application Details

Use 2 ug/10^6 cells for Flow cytometry.

Conjugate

Unconjugated

Specificity

The antibody reacts with a diffuse band at ~90 kDa to 120 kDa by Western blot on HeLa cell extract. It has also been used successfully for immunocytochemistry showing strong punctate cytoplasmic staining corresponding to lysosomes and late endosomes. Does not react with rodent protein.

Usage Statement

For research use only.

Country of Origin

United States

Expiration

12 months after date of receipt (unopened vial).

Synonyms

Lysosomal Associated Membrane Protein 1, also known as CD107a, lysosomal associated membrane glycoprotein 1, LGP120 and LAMPA

UniProt ID

P11279

Shipping

25°C (ambient)
